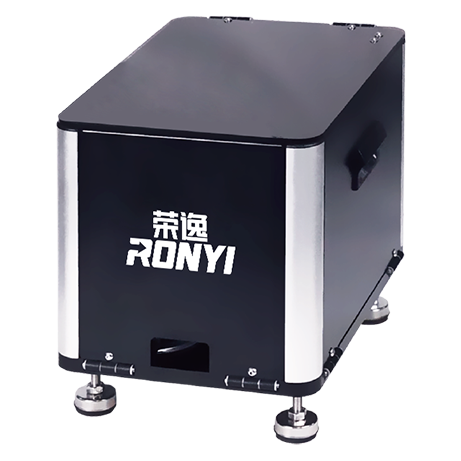

QZC-208Vibrating plate screw feeding machine

High standardization: the integrated forming sorting tray is stable for nailing and is not easy to slip off the jam.

Precision vibrating plate, selected high-quality aluminum, more durable, longer life.


Get Solutions >
Vibrating plate screw feeding machine
Product feature
  • 1High standardization: the integrated forming sorting tray is stable for nailing and is not easy to slip off the jam.

  • 2Precision vibrating plate, selected high-quality aluminum, more durable, longer life.

  • 3Vibrating disc feeding, stable feeding, clamping rate less than 5/10,000.

  • 4New industrial design appearance, more concise and generous.

  • 5Intelligent digital display panel, abnormal alarm digital control, can be roller motor, turntable motor, vibration motor, do efficient function setting operation, and have individual counting function and total counting function.

  • 6Equipped with material shortage signal to ensure sufficient material supply.

Parameters Table
TYPEQZC-208
DIMENSIONL380*W291.8*H295.5mm
Applicable screw specificationsM2.0-M6.0、Tooth length≤25mmWEIGHT(KG)17kg

POWER

SUPPL

INPUTAC100-240V(50/60HZ)Applicable pickup methodAir blowing
OUTPUTDC12V2.0AWorking air pressure0.5-0.8MPa
Effective capacity of silo1000CC
Screw requirementsThe length-diameter ratio is greater than 1.5 (total length: cap diameter) less than 1.5 can be customized
Screw out speed1.3S/piece
Optional featuresCounting function, overload protection, intelligent electric batch

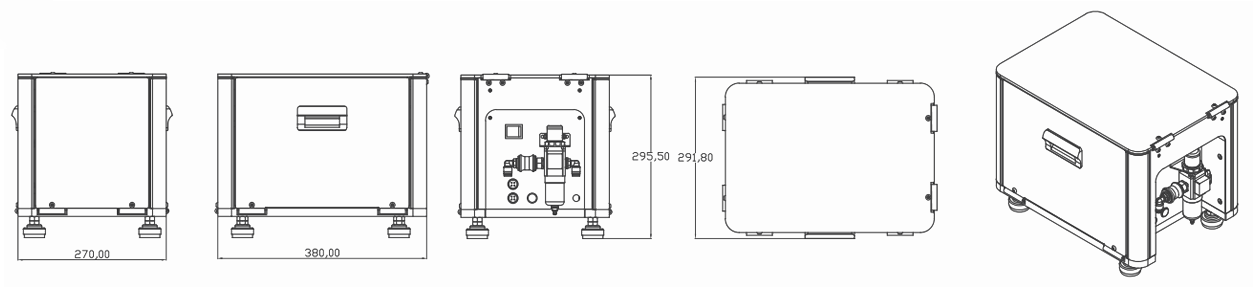

Appearance size
