QHY-a358Upgraded version Automatic screw feeder

A wide range of screws can be applicable, and the track can be adjusted freely according to the size of the screw, which is simple and easy to understand and operate.

The front reclaiming port can be adjusted according to the size of the batch head. The vibration size is adjustable.

Get Solutions >

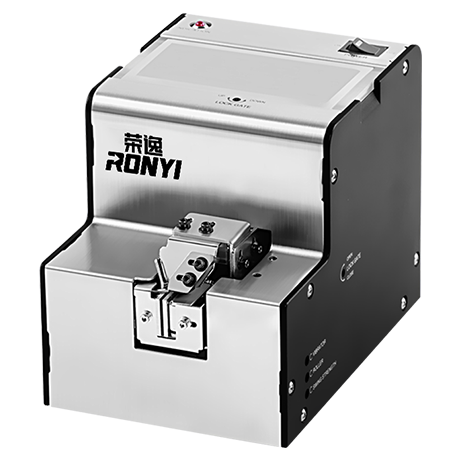

Upgraded version Automatic screw feeder
Product feature
  • 1A wide range of screws can be applicable, and the track can be adjusted freely according to the size of the screw, which is simple and easy to understand and operate.

  • 2The front reclaiming port can be adjusted according to the size of the batch head. The vibration size is adjustable.

  • 3Humanized multi-engineering management, with grounding jacks on the back of the PCB and the machine. 15V transformer provides the correct voltage.

  • 4The reclaimer is hardened and has a long service life.

  • 5The PCB is protected by a case to prevent the leaking screw from being short-circuited.

  • 6The vibration motor has a shaft center eccentric wheel fixing plate to prevent damage to the motor when eccentric vibration occurs.

  • 7The FCB has overload protection. When the material is jammed, it will be reversed to automatically release the jam. If it cannot be eliminated, the power will be cut off and an alarm will be issued.

Parameters Table
Product parameters(Please contact us for non-standard specifications)
TYPEQHY-a358

POWER

SUPPLY

INPUTAC100-240V(50/60HZ)
OUTPUTDC15V 2.0A
DIMENSIONL182*W124*H150
WEIGHT(KG)N.W 3.1KGS
SCREW CAPACITY220CC

OVERLOAD PROTECTION CIRCUIT

Reverse when overload, forward after recovery
ATTACHMENTS

L-shaped hexagon wrench*1pcs, transformer* 1set , Rail Fixture*1set, Screw file*1pcs, Operation manual

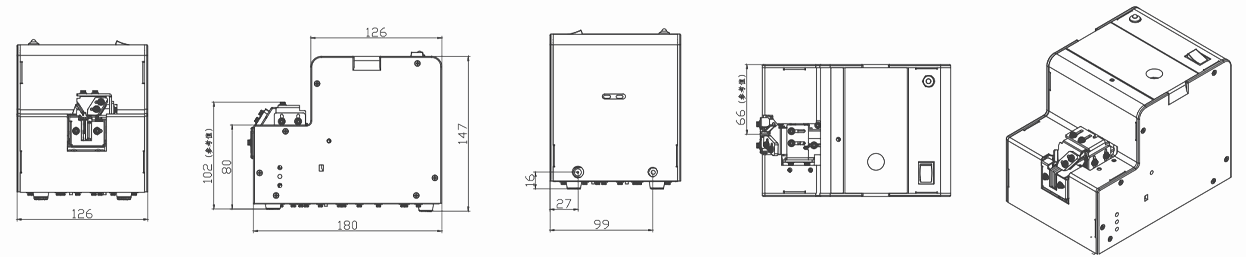

Appearance size
