RY-728JMacro Automatic screw feeder

Cross material distribution mechanism and precise positioning point ; single screw discharging and reclaming bring stable screw conveying。

Wide range of screw use, larger length range; smooth screw discharge; fast speed; high precision; strong stability.

Get Solutions >

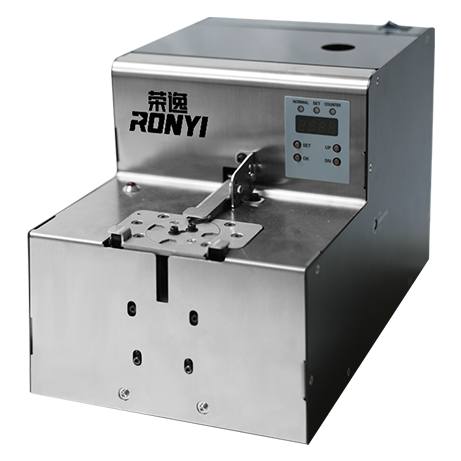

Macro Automatic screw feeder
Product feature
  • 1Cross material distribution mechanism and precise positioning point ; single screw discharging and reclaming bring stable screw conveying。

  • 2Wide range of screw use, larger length range; smooth screw discharge; fast speed; high precision; strong stability.

  • 3Digital control interface and high-efficiency function operation setting bring more convenience to use of the machine; with individual counting and total counting functions.

  • 4Driven by brushless motor imported from Japan, service life and durability are greatly improved.

  • 5The track adopts full-line cutting precision processing, which makes the gap even and flat with a small overall tolerance. The volume of the silo becomes larger, which saves time for manual filling.Suitable for larger screws.

Parameters Table
TYPERY-728J

POWER

SUPPL

INPUTAC100-240V(50/60HZ)
OUTPUTDC12V 2.0A
DIMENSIONL262.4*W162.5*H177.6
WEIGHT(KG)N.W 5KGS
SCREW CAPACITY600CC
OVERLOAD PROTECTION CIRCUITReverse when overload, forward after recovery
ATTACHMENTSL-shaped hexagon wrench*1pcs, transformer* 1set , Rail Fixture*1set, Operation manual
APPLICABLE CREWScrew diameter M2.0-M6.0, tooth length ≤ 25mm

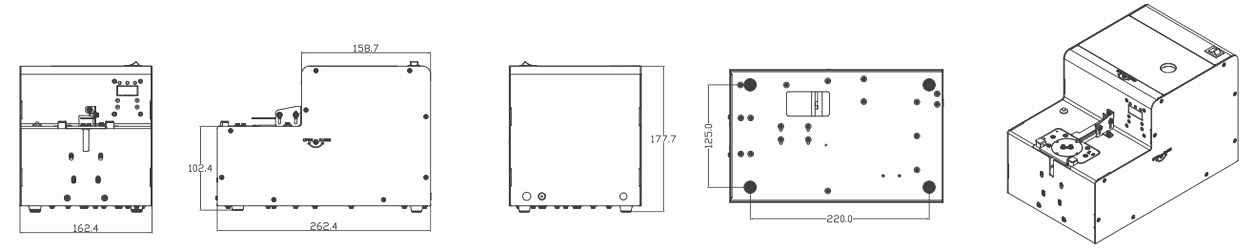

Appearance size
