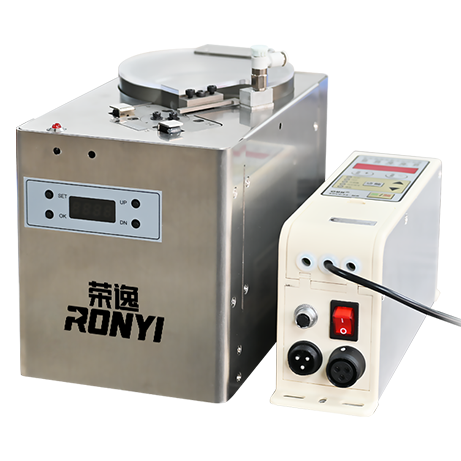

RY-J558Automatic Vibration Bowl Feeder

Using precision base and digital controller; simple operation and stable feeding.

Cross material distribution mechanism; accurate positioning point; single discharging and reclaiming; so that the screw is not easy to slip off; jamming; bonding; etc.

Get Solutions >
Automatic Vibration Bowl Feeder
Product feature
  • 1Using precision base and digital controller; simple operation and stable feeding.

  • 2Cross material distribution mechanism; accurate positioning point; single discharging and reclaiming; so that the screw is not easy to slip off; jamming; bonding; etc.

  • 3The screw discharges smoothly; with fast speed; high precision and strong stability. Suitable for smaller size parts; the smaller the screw; the more advantageous the vibration bowl.

  • 4The track adopts full-line cutting precision processing; the track gap is even and flat; and the overall tolerance is small.

  • 5The troubleshooting is clearly visible; and the maintenance and adjustment are very convenient.

Parameters Table
TYPERY-J558

POWER

SUPPL

INPUTAC100-240V(50/60HZ)
OUTPUTDC12V 2.0A
DIMENSIONL194.3*W120*H155.2
WEIGHT(KG)N.W 6KGS
SCREW CAPACITY85CC
OVERLOAD PROTECTION CIRCUITReverse when overload, forward after recovery
ATTACHMENTSControl box, signal cable, power cable (input, output), operation manual, grounding wire
Applicable screw specificationsScrew diameter M0.6-M4.0, tooth length ≤12mm

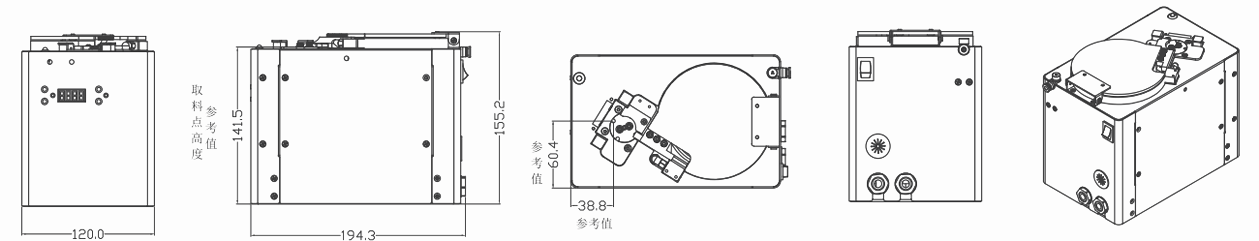

Appearance size
