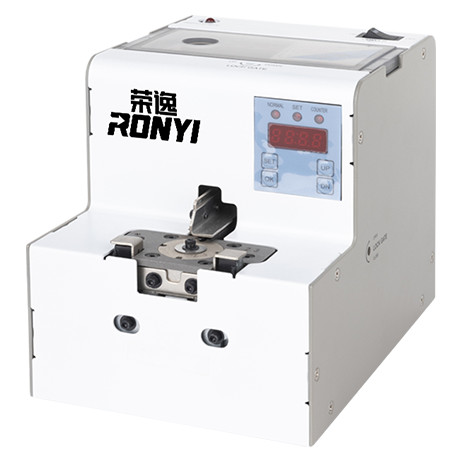

RY-528JMedium Automatic screw feeder

Cross material distribution mechanism and precise positioning point; single screw discharging and reclaming bring stable screw conveying.

Wide range of applicable screw, smooth screw discharge; fast speed; high precision; strong stability.

Get Solutions >
Medium Automatic screw feeder
Product feature
  • 1Cross material distribution mechanism and precise positioning point; single screw discharging and reclaming bring stable screw conveying.

  • 2Wide range of applicable screw, smooth screw discharge; fast speed; high precision; strong stability.

  • 3Digital control interface and high-efficiency function operation setting bring more convenience to use of the machine; with individual counting and total counting functions.

  • 4Driven by brushless motor imported from Japan, service life and durability are greatly improved.

  • 5The track adopts full-line cutting precision processing, which makes the gap even and flat with a small overall tolerance.

  • 6The important parts are processed by CNC and adopt wire cutting, which ensure the precision and durability of our product.

Parameters Table
Product parameters(Please contact us for non-standard specifications)
TYPEQHW-528QJW-528

POWER

SUPPLY

INPUTAC100-240V(50/60HZ)
OUTPUTDC12V 2.0A
DIMENSIONL182*W124*H150
WEIGHT(KG)N.W 3.1KGS
SCREW CAPACITY220CC
OVERLOAD PROTECTION CIRCUITReverse when overload, forward after recovery
ATTACHMENTSL-shaped hexagon wrench*1pcs, transformer* 1set , Rail Fixture*1set, Operation manual

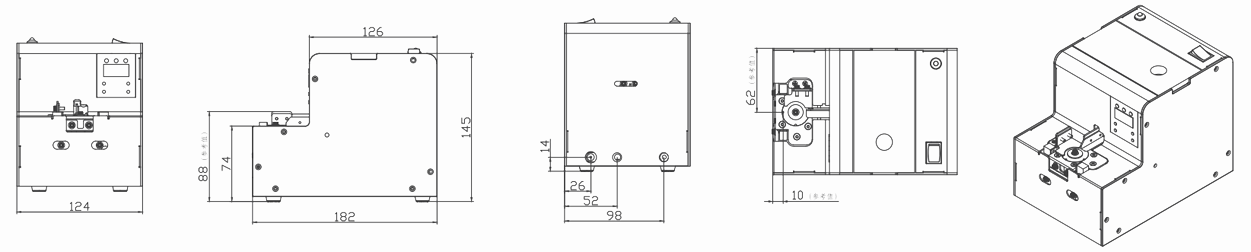

Appearance size
