QJW-328Mini version automatic screw feeder

Cross material distribution mechanism and precise positioning point ; single screw discharging and reclaming bring stable screw conveying; small size and convenient installation, just occupies a

small area of the workbench.

Digital control interface and high-efficiency function operation setting bring more convenience to use of the machine; with individual counting and total counting functions.

Get Solutions >

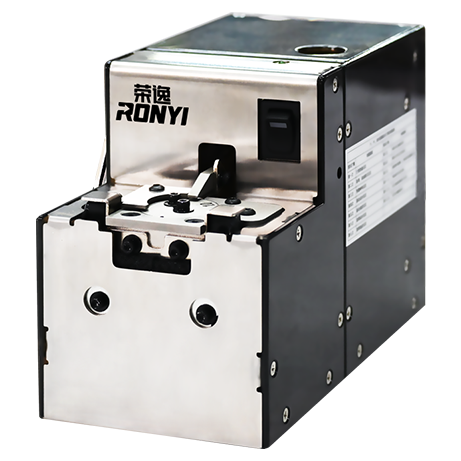

Mini version automatic screw feeder
Product feature
  • 1Cross material distribution mechanism and precise positioning point ; single screw discharging and reclaming bring stable screw conveying; small size and convenient installation, just occupies a small area of the workbench.

  • 2Digital control interface and high-efficiency function operation setting bring more convenience to use of the machine; with individual counting and total counting functions.

  • 3Driven by brushless motor imported from Japan, service life and durability are greatly improved.

  • 4The track adopts full-line cutting precision processing, which makes the gap even and flat with a small overall tolerance; suitable for the use of small crews.

  • 5The important parts are processed by CNC and adopt wire cutting, which ensure the precision and durability of our product.

Parameters Table
Product parameters(Please contact us for non-standard specifications)
TYPEQHW-328QJW-328

POWER

SUPPLY

INPUTAC100-240V(50/60HZ)
OUTPUTDC12V 2.0A
DIMENSIONL160*W82*H112
WEIGHT(KG)N.W 1.53KGS
SCREW CAPACITY80CC

OVERLOAD PROTECTION CIRCUIT

Reverse when overload, forward after recovery
ATTACHMENTSL-shaped hexagon wrench*1pcs, transformer* 1set , Rail Fixture*1set, Operation manual

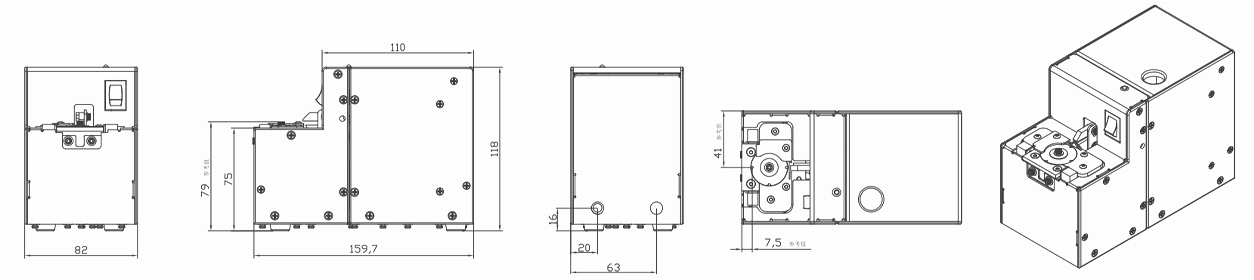

Appearance size
